NCSA25D34

  • 輸入類型 : LVPECL, LVDS, CML, SSTL, HSTL, HCSL, LVCMOS
  • 輸入端口數 : 3
  • 輸出端口數 : 4
  • 輸出類型 : LVPECL, LVDS, HCSL, Hi-Z
  • 器件類型 : AEC-Q100 automotive differential buffer
  • Core Supply Voltage(V) :
  • Output Supply Voltage(V) :
  • Output frequency(Min)(MHz) :
  • Output frequency(Max)(MHz) :
  • Additive Jitter(fs) :
  • Temperature Range :
  • Package :
輸入類型: LVPECL, LVDS, CML, SSTL, HSTL, HCSL, LVCMOS
輸入端口數: 3
輸出端口數: 4
輸出類型: LVPECL, LVDS, HCSL, Hi-Z
器件類型: AEC-Q100 automotive differential buffer
所屬分類
Clock Buffer
咨詢電話:010-57158360
NCSA25D34
産品描述

産品描述

The NCSA25D34 is a highly versatile, high-performance, 4-output differential AEC-Q100 qualified fanout buffer and level translator which can operate up to 3.1GHz with ultra-low additive jitter.

The input clock can be selected from two universal differential or single-ended inputs, or one crystal input which can be overdriven by external single-ended clock. Crystal input frequencies from 8MHz to 50MHz are supported.

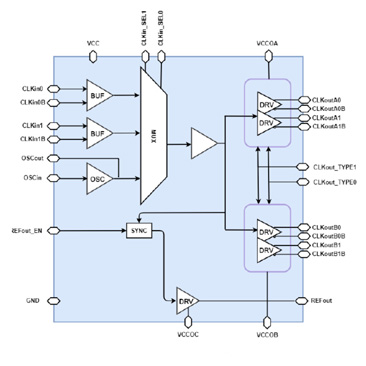

A 3:1 input MUX controlled by two external pins is implemented to distribute the selected input clock to two banks of 2 differential outputs and one LVCMOS reference output.

Both banks of differential outputs can be configured as LVPECL, LVDS, HCSL driver mode or disabled mode by two external pins.

The NCSA25D34 operates from a 3.3V core supply and 3 independent 3.3V or 2.5V driver output supply, and does not have power supply sequencing requirements between the core and output supply domains.

産品參數

High-performance clock buffer with Ultra-low noise floor of -167 dBc/Hz

• Level translation from 3.3v core supply to output Supply of 3.3V or 2.5V

• 3:1 Input clock multiplexer which is selectable through input pins.

Two universal inputs operate up to 3.1GHz and can accept LVPECL, LVDS, CML, SSTL, HSTL, or HCSL signals

Both differential and single-ended input are supported

Support either DC or AC-coupled input interface

Crystal input frequencies from 8MHz to 50MHz

Crystal overdrive mode with input frequency up to 250MHz

• 4 differential output with two output supply banks

Support LVPECL, LVDS, HCSL or Hi-Z output mode

Ultra-low additive jitter (at 156.25MHz) 40 fs RMS (10K to 20MHz, LVPECL) 52 fs RMS (10K to 20MHz, LVDS)

• Highs PSRR (at 156.25 MHz)-67 dBc LVPECL, -79 dBc LVDS

• LVCMOS reference clock output with independent VCCOC supply and synchronous enable input



Core Supply Voltage(V):3.3V

Output Supply Voltage(V):2.5V, 3.3V

Output frequency(Min)(MHz):-

Output frequency(Max)(MHz):3100

Additive Jitter(fs):43

Temperature Range:-40 to 105

Package:32-pin QFN(5mm x 5mm)
