NCS8837

  • 封裝 : eLQFP-128(14mmx14mm)
TFT LCD Timing controller for 4K2K TV system
所屬分類
TCON
咨詢電話:010-57158360
NCS8837
産品描述

産品描述

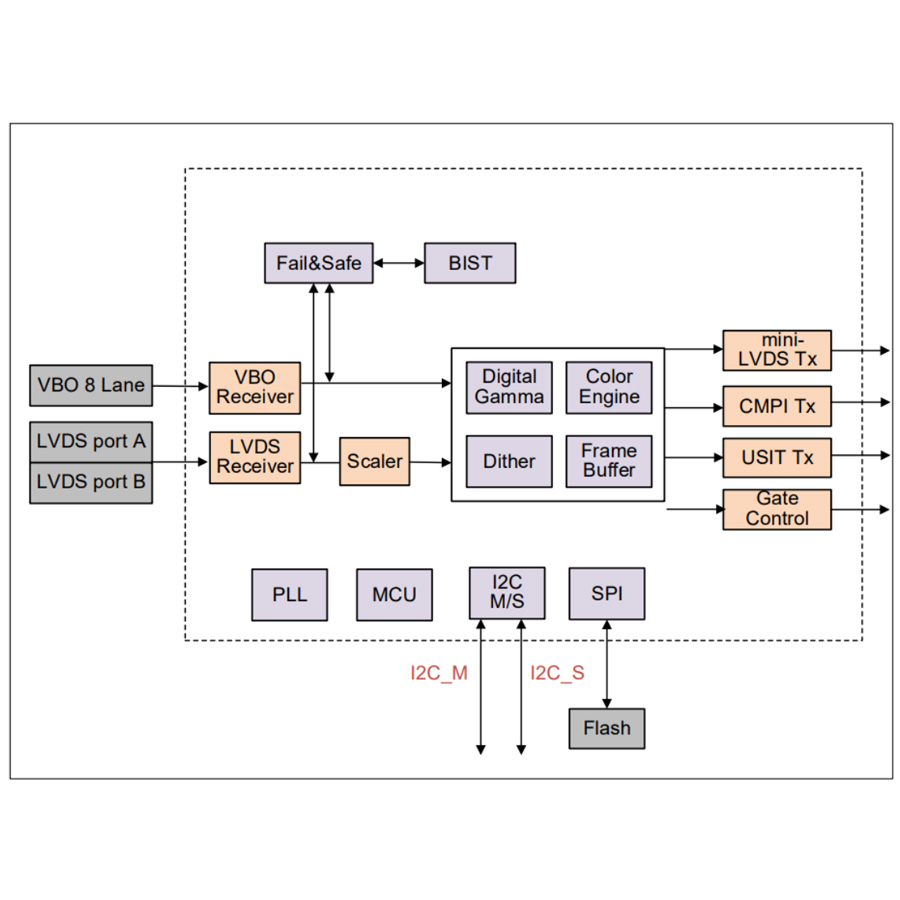

NCS8837 is a timing controller with 8 Lane V-by-One or 2 Port LVDS receiver and miniLVDS/USIT/CMPI transmitter for TFT-LCD panel. It supports up to UHD (3840x2160@60Hz) resolutions. The mini-LVDS interface embedded with reset pulse to source driver, and clock rate could support to 425.000MHz. The USIT interface and CMPI interface with point-topoint embedded clock transmission support bit-rate of each pair up to 1.5Gbps.

産品參數

Input

 • Support 8 lane V-by-One receiver

 • Support 2 channel LVDS receiver

 • 6bit/8bit/10bit input

Output

 • Support mini-LVDS 1/2/4 port-3/6 pair

 • Support USIT 2/4/6/8/12/24 pair

 • Support CMPI 2/4/6/8/12/24 pair

 • 6bit/8bit output

TCON

 • Support built-in self-test (BIST) pattern function

 • Support 1/2/4 frame inversion polarity control

 • Support 1-line/2-line/1+2-line/Column inversion polarity control

 • Support POL 28s inversion

 • Support ODD/EVEN signal for Level Shifter

 • Support Normal gate, GOA, Dual gate, Triple gate

 • Support Z-inversion data mapping

 • Support Single-Source(1D1G) mapping

 • Support H-mirror

 • Support R/B swap, Polarity swap, Port swap, MSB/LSB swap

 • Support Aging mode

 • Support spread spectrum clock generator (SSCG) for EMI issue

 • Support 12-bit digital gamma function

 • Support Dither (FRC)

 • Support color engine

 • Support Scaling function



Power

 • 3.3V/1.8V/1.2V power supply

Miscellaneous

 • Built-in MCU

 • Support internal oscillator or external crystal source input

 • Support master I2C interface and slave I2C interface

 • Support master SPI interface

Package

 • 128-pin eLQFP 14mmx14mm package with E-Pad

 • RoHS Compliant
