NCS8823E

  • 封裝 : QFN-32 (4mm x 4mm)
DisplayPort to VGA Converter on USB Type-C
所屬分類
Type-C
咨詢電話:010-57158360
NCS8823E
産品描述

産品描述

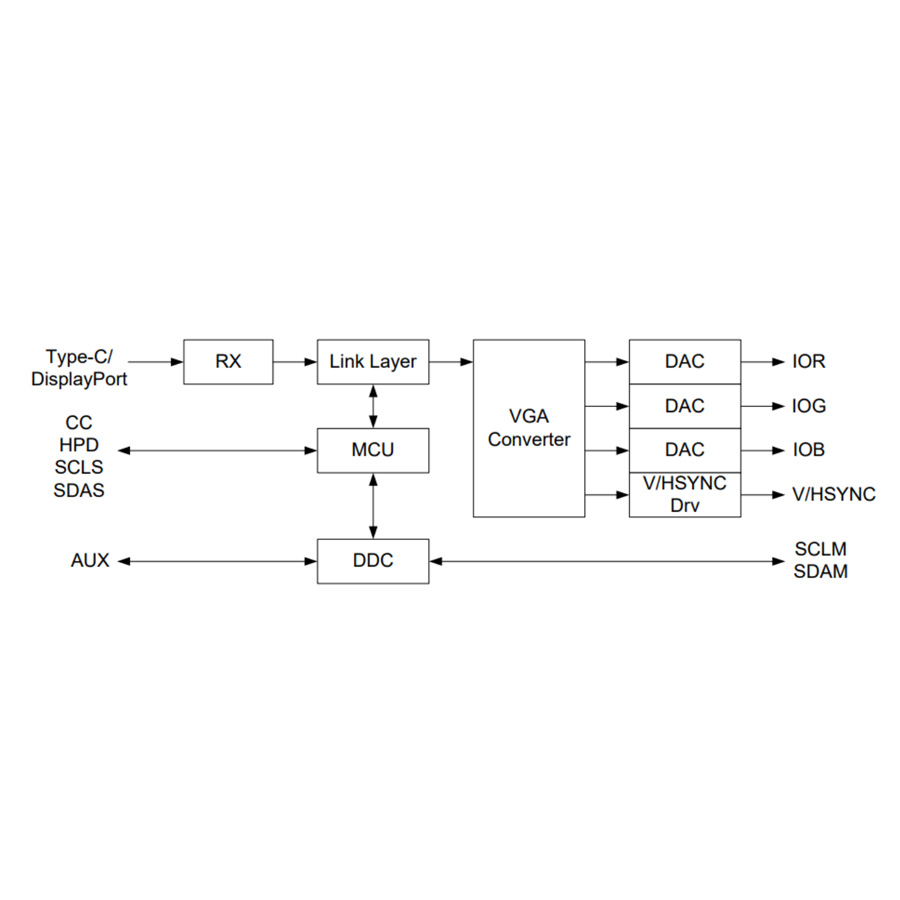

The NCS8823E is a low-power, the DisplayPort signal to VGA translator through the USB Type-C connector. It is suitable for USB Type-C to VGA converter, adapter, docking device. This device combines a USB Type-C based DisplayPort receiver and a VGA transmitter. The NCS8823E can work without any external configuration or setup. The NCS8823E supports two DisplayPort Main Link Lanes input with data rate running at 1.62Gb/s, 2.7Gb/s, can accept RGB digital formats in either 18-bit 6:6:6 or24-bit 8:8:8. The VGA output can support up to WUXGA (1920*1200@RB) @ 60Hz.

産品參數

 VGA Output

 • Max resolution up to WUXGA (1920*1200@RB)@60Hz

 • Triple 8 Bit DAC(digital to analog converter) with clock up to 166MHz

 • VESA VSIS v1r2 compliant

 • R/G/B swap

 USB TYPE-C

 • USB Type-C Cable and Connector Specification Revision 1.3 compliant

 • USB Power Delivery Specification Rev3.0 compliant

 • DisplayPort Alt Mode on USB Type-C Standard Version 1.0a compliant

 • Support 2 Main Link Lanes at either1.62Gbps (RBR) or 2.7Gbps (HBR) link rate



• Clock

 • Internal oscillator without any additional external crystal

•  Embedded MCU

 • Support I2C Master and Slave up to 400 KHz.

 • 5V tolerance DDC I/Os

• Power

 • 5V power supply

 • Power consumption 1920x1080 24bit @ 60Hz ~ TBDmW Deep-sleep mode power <1mW

• Package

 • QFN-32 (4mm x 4mm) package

 • RoHS Compliant
