NCS8822

  • 封裝 : QFN-32 (4mm x 4mm)
DP1.2 to VGA Converter
所屬分類
DP/eDP
咨詢電話:010-57158360
NCS8822
産品描述

産品描述

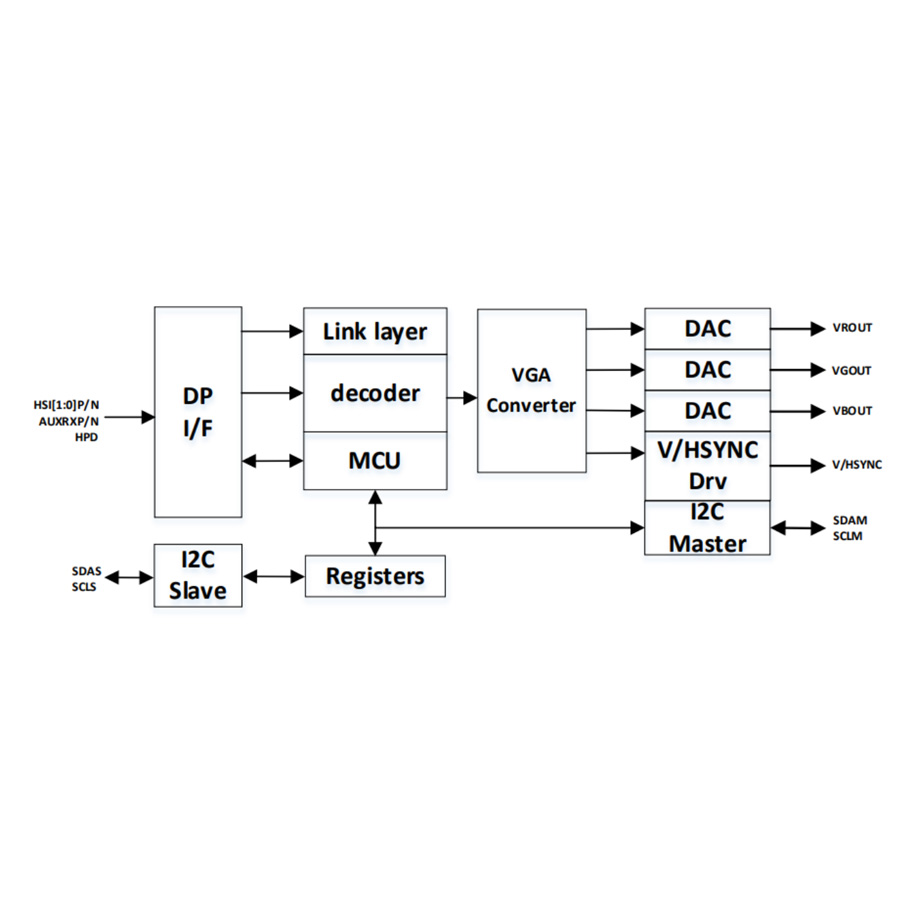

The NCS8822 is a low-power DisplayPort-to-VGA converter combines a DisplayPort input interface and an analog RGB DAC output. For DP1.2 input NCS8822 supports 1-lane/2-lane, also support lane swap and P/N swap. For VGA output NCS8822 Maximum support to WUXGA (1920*1200@RB) and above at 60Hz frame rate. NCS8822 provides high picture quality. All the functions pack into a small 4mm*4mmQFN32 package which saves the precious space in mobile devices.

産品參數

VGA Output

 • Up to WUXGA (1920*1200@RB) @60Hz supported

 • Triple 8 Bit DAC (digital to analog converter) with clock up to 160MHz

DisplayPort Input

 • VESA DisplayPort V1.2 Compliant

 • Support 2-lane input, speed up to 1.62Gbps (RBR) / 2.7Gbps (HBR)

 • Support lane swap and P/N swap

 • Support 1-Mbps AUX channel

 • Support HPD (Hot-Plug Detect)

 • Built-in High-performance adaptive equalization

 • Support DDC/CI

Clock

 • Embedded oscillator and there’s no need for the external crystal



Misc

 • Built-in video test pattern

 • Embedded EDID

 • Embedded MCU, support I2C Master and Slave up to 400-KHz.
Power

 • 3.3V system voltage

 • Power consumption @1920*1200*24bit*60Hz ~ 429mW Deep-sleep mode power <1mW

Package

 • QFN-32 (4mm x 4mm) package

 • RoHS Compliant
