産品描述

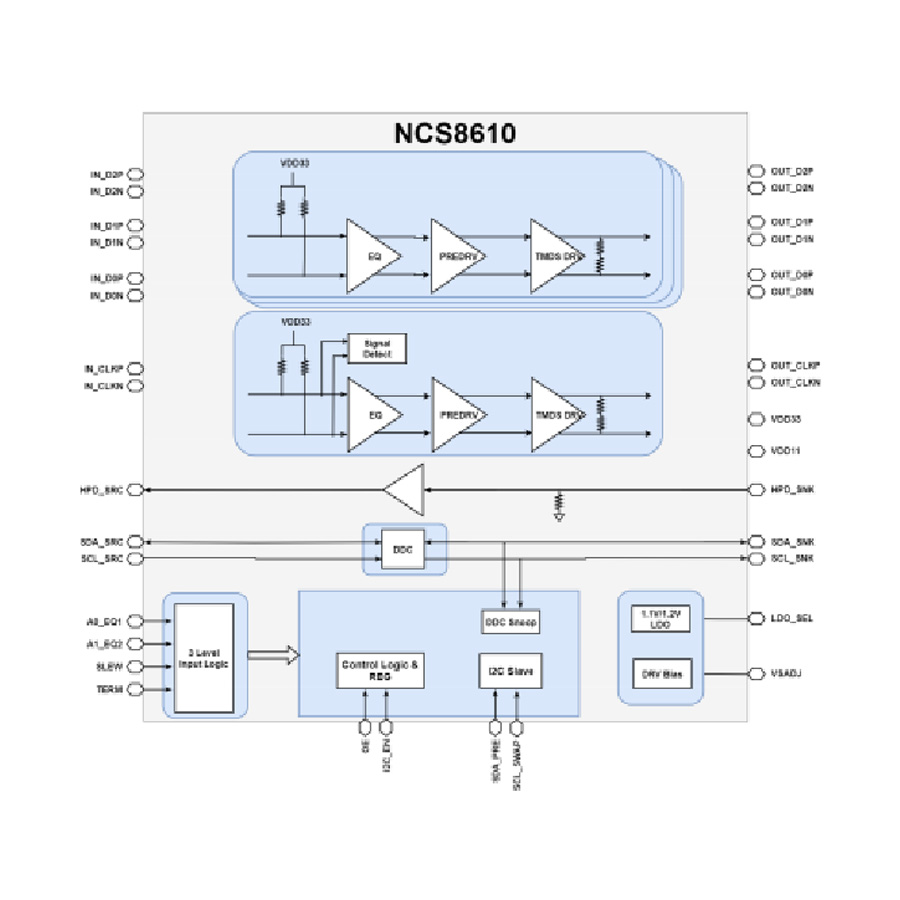

The NCS8610 is an AC/DC-coupled input HDMI signal to TMDS/DVI/FRL redriver supporting DVI 1.0 and HDMI 1.4b, 2.0b and 2.1 output signals. The NCS8610 supports four TMDS/FRL channels and Digital Display Control (DDC) interfaces. The NCS8610 supports signaling rates up to 6 Gbps at HDMI 2.0b or 12 Gbps at HDMI 2.1. The NCS8610 can be configured to support the HDMI2.0 or HDMI 2.1 standard. The NCS8610 supports dual power supply rails of 1.1V/1.2V on VDD11 and 3.3V on VDD33 for power reduction. The NCS8610 also supports single power supply rail of 3.3V on VDD33 and embedded LDO of 1.1V/1.2V on VDD11 by package pin option for cost sensitive application. NCS8610 supports fixed receiver EQ gain using I2C or pin strap to compensate for different lengths input cable or board traces.
産品參數
• Support both AC-coupled and DC-coupled TMDS or DisplayPort input
• Data rate up to 12 Gbps, compatible with HDMI 2.0b and HDMI 2.1 FRL
• Support DisplayPort Mode via I2C control
• Programmable receiver data lane equalizer gains up to 16 dB
• Global or independent lane control on EQ, pre-emphasis/de-emphasis, output swing and slew rate
• Three source termination impedances selection
• TMDS output amplitude adjust using onchip resistor or off-chip resistor
• Full lane swap on main lanes
• Supports Hot Plug Detect
• Pin Strap or I2C control
• Low Power Consumption from 1.1V/1.2V and 3.3V dual power supply rail
• Integrated on-chip 1.1V/1.2V LDO for single 3.3V option
• Temperature range: -40ºC to 85ºC
