NCS8801S

  • 封裝 : QFN-56 (7mm x 7mm)
RGB/LVDS to eDP Converter w/o Scaler
所屬分類
DP/eDP
咨詢電話:010-57158360
NCS8801S
産品描述

産品描述

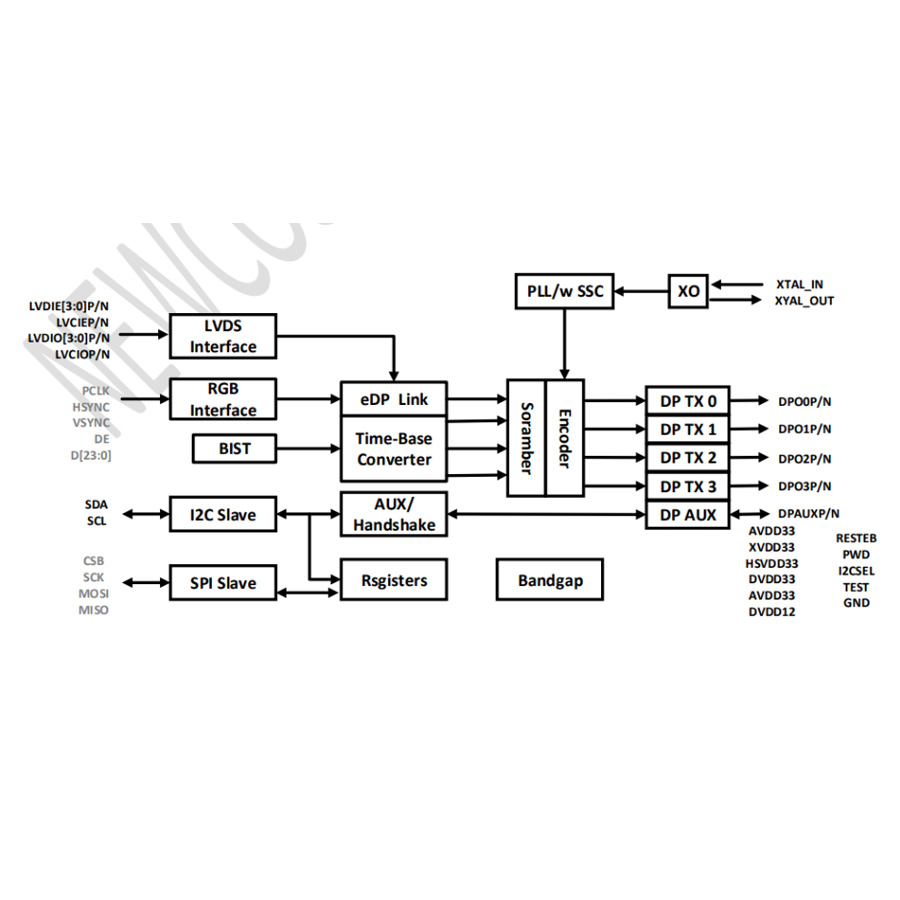

NCS8801S is a low-power RGB/LVDS-to-DisplayPort/eDP converter, which is designed for mobile devices including smartphones, tablets, laptops, etc. to support high-definition DP/eDP displays.  NCS8801S supports 4-lane DP/eDP output which is typically required to support QXGA (2048*1536) and above at 60Hz frame rate.  All the functions including both RGB and LVDS interfaces pack into a small 7mm*7mm QFN56 package which saves the precious space in mobile devices.

産品參數

Embedded-DisplayPort (eDP) Output

1/2/4lane eDP @ 1.62/2.7Gbps per lane

UP to WQXGA (2560*1600) supported

Up to 6dB pre-emphasis

RGB Input

18/24bit RGB Interface

Pixel clock up to 270MHz

SDR/DDR supported

Pin order reversal supported

LVDS Input

Single/Dual-channel 6/8bit LVDS interface

400Mbps to 1Gbps per data pair

Built-in termination

Channel and polarity swap supported

Reference Clock

Any freq. between 19MHz and 100MHz

Crystal or single-ended clock input

Built-in 5000ppm SSC generator



Misc

I2C/SPI for chip configuration

Built-in eDP handshake protocol

I2C-AUX channel for TCON/DPCD/EDID

control

Built-in video test pattern

Power

1.2V core supply

2.5V or 3.3V IO supply

RGB IO can go down to 1.8V

Power consumption ~ 187mW

@ 1920*1080*24bit*60Hz, LVDS mode

Deep-sleep mode power <1mW

Package

QFN-56 (7mm x 7mm) package

RoHS Compliant
